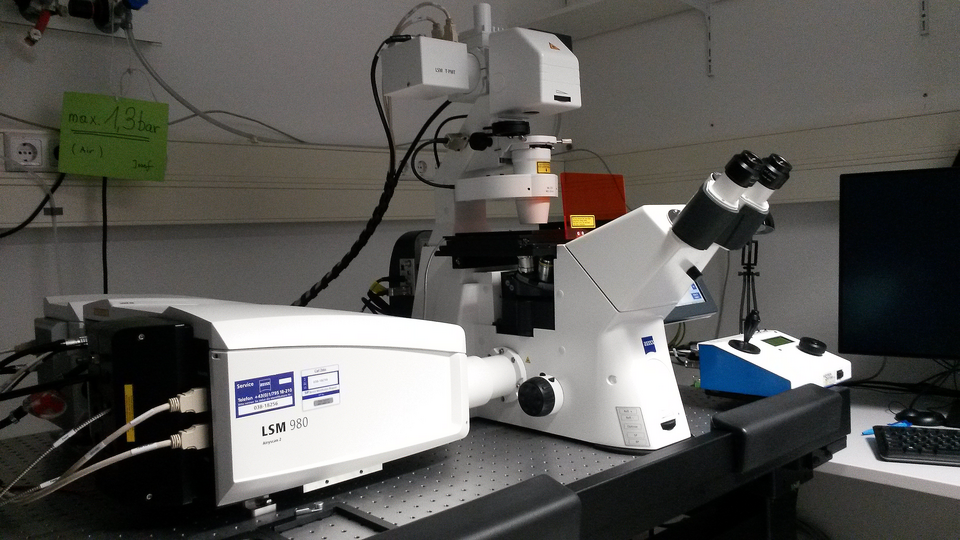

Zeiss LSM 980 with Airyscan 2
Inverse confocal microscope with up to 6 channels (2 PMT, 4 GaAsP, up to 8192 x 8192 pixels). Airyscan 2 detector (32 channel GaAsP) for super-resolution imaging or high-speed acquisition (Multiplex mode with 4x or 8x parallelisation of detection), transmitted light PMT. FCS option and spectral imaging (via sequential acquisition). Motorized XY stage with Z-Piezo top plate, stage-top environmental control (temperature/CO2) and Python interface for complex workflows. Widefield illumination: 4-channel Zeiss Colibri LED, halogen lamp (room 1.223). A small stage-top incubation system can also be used for short term live imaging experiments.
Objectives
- EC Plan-Neofluar 2.5x/0.085, working distance (WD) 8.8 mm
- EC Plan-Neofluar 10x/0.3, WD 5.2 mm
- LD LCI Plan-Apochromat 40x/1.2 Imm Corr DIC (silicone oil, glycerol or water immersion), WD 0.41 mm
- Plan-Apochromat 40x/1.4 Oil DIC, WD 0.13 mm
- Plan-Apochromat 63x/1.4 Oil DIC, WD 0.19 mm (for Airyscanning)
- C-Apochromat 40x/1.2 W FCS Corr (water immersion, for FCS), WD 0.28 mm (@0.17mm coverglass)
Lasers
- 405 nm (30 mW)
- 445 nm (30 mW)
- 488 nm (30 mW)
- 514 nm (30 mW)
- 561 nm (25 mW)
- 639 nm (25 mW)
